Fire Dampers

J-TEK are installers of dampersof any size and shape up to 1m square. Full service and repairs undertaken.

Motorised Fire Dampers

CE marked complying with the requirements of BS EN 15650

Tested installation methods in differing supporting constructions (BS EN 1366-2)
ES classified fire dampers with reduced smoke leakage characteristics to

BS EN 1366-2 (test standard) and BS EN 13501-3 (classification document)

Devised to respond to smoke alarms for the protection of escape routes and areas with sleeping risk (ADB)
Devised to be controlled by proprietary fire and/or smoke control systems including BSB damper control panels
Case leakage – Class C EN 1751
Blade leakage – Class 2 EN 1751
Aerodynamically Air Control tested to BS EN 1751
Replaceable thermal fuse element from outside of the duct.
Commissioning friendly
Blade Position Indicator
IP54 degree of protection
Test switch for periodic damper testing
LED green indication when lit indicates that a supply voltage is present and that the temperature fuse is operational

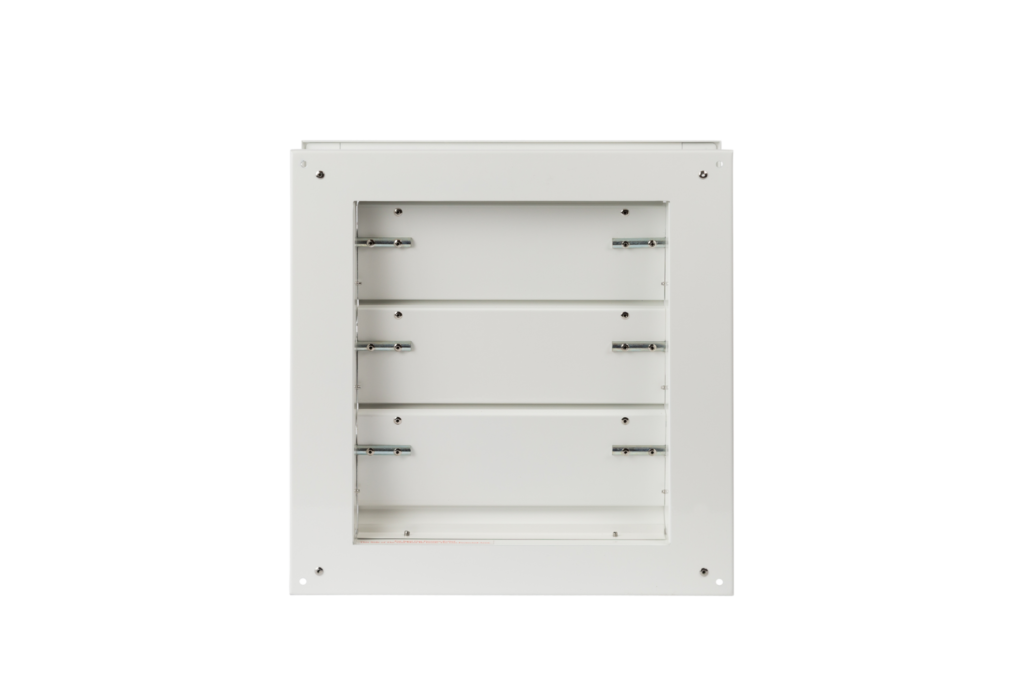

SHX one way vent for inert fire suppression gases.

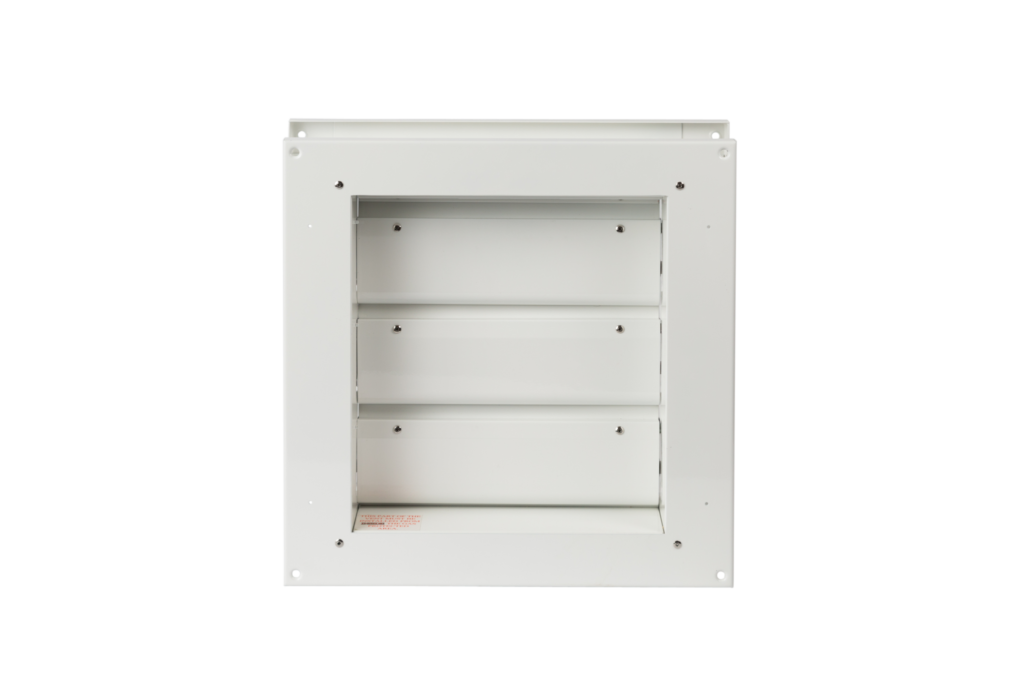

DUX Two way venting for chemical gases.

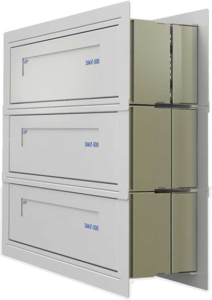

DMX venting with zero leakage designed for both chemical and inert gases.

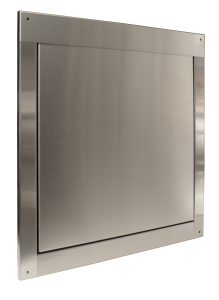

DWP a stainless steel weather Louvre which can be painted in any colour.

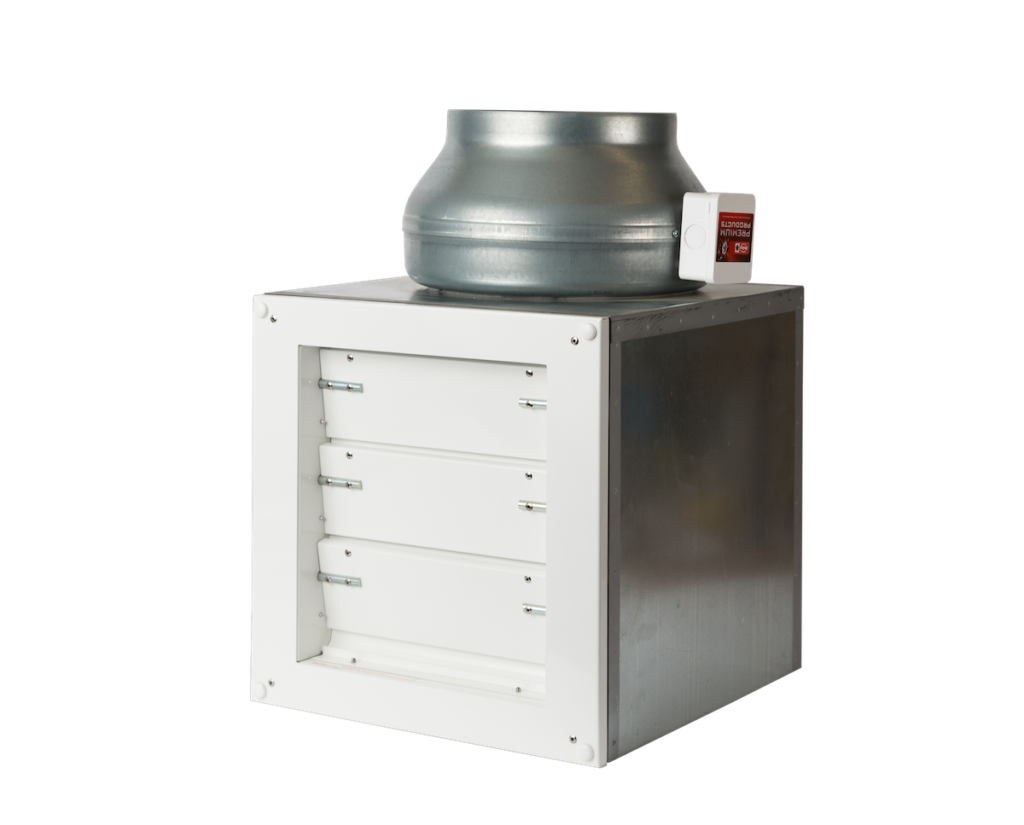

PXF floor mounted extract unit with either a One way or Two way vent depending on the gas.

Fuse link dampers

Complies to BS EN 15650
Tested installation methods in differing supporting constructions (BS EN 1366-2)
E classified fire dampers complying with BS EN 13501-3
FD-AF has been tested both vertically and horizontally. It is installed using single side access without the need to provide fire rated infill material
Galvanised and stainless steel options
Microswitch option for remote indication

For more information about Data Centre Installations
